제품 상세 정보:
결제 및 배송 조건:
|

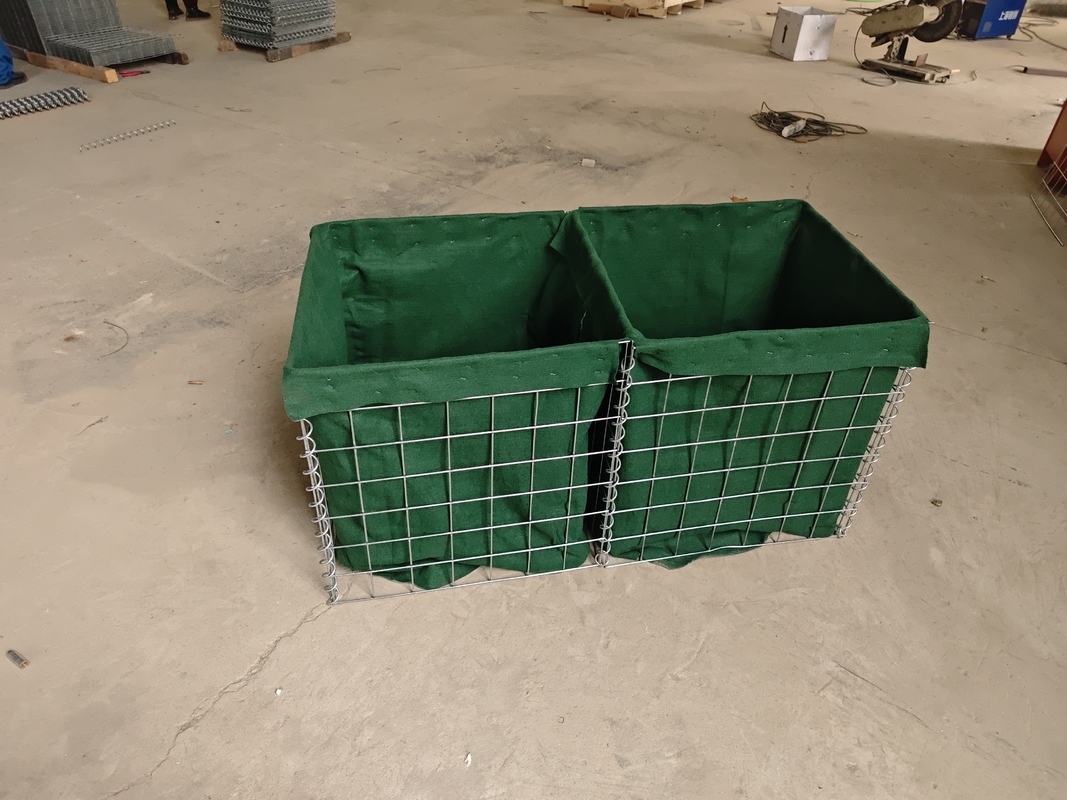

| 제품명: | 지구로 가득 찬 방어 장벽 군사 공학 기지 방어 벽 | 키워드: | 지구가 가득 찬 방어 장벽 |
|---|---|---|---|
| 메쉬 직경: | 5.0mm, 4.0 mm | HESCO 기능: | 쉽게 조립 |
| 표면 처리: | 아연 도금 | 메쉬 구멍: | 3*3 '(7.62*7.62cm), 75mmx75mm |
| 유형: | 용접 와이어 메쉬 방어 장벽 | 사양: | CE, BV, SGS |
| 용법: | 방어 적 | 모양: | 정사각형 |
| 와이어 직경: | 3.0-6.0mm | 재료: | 강철 |
| 강조하다: | galvanized steel defensive barrier,military grade anti climb barrier,earth filled defensive barrier |
||
| Product Name | Earth-filled Defensive Barriers Military Engineering Base Defense Walls |
|---|---|
| Key Word | earth filled defensive barriers |
| Mesh Diameter | 5.0mm, 4.0 mm |
| Hesco Feature | Easily Assembled |
| Surface Treatment | Galvanized |
| Mesh Hole | 3*3'(7.62*7.62cm), 75mmx75mm |
| Type | Welded wire mesh Defensive Barrier |
| Specification | CE, BV, SGS |
| Usage | Defensive |
| Shape | Square |
| Wire Diameter | 3.0-6.0mm |
| Material | Steel |
Technical Specifications:
Material: S355J2 grade steel with hot-dip galvanization
Impact Resistance: Stops 7.5-ton vehicle at 80 km/h
Penetration Rating: <7.0 meters post-impact
Operating Temperature: -40°C to +70°C
Surface Finish: Galvanized or RAL color powder coating
Foundation: Shallow base (600mm) with optional bolt-down version
Control System: 24V DC hydraulic power unit with backup batter
Standard Steel Security Barrier
Basic Perimeter Protection Fence
Industrial Grade Defense Wall
Universal Safety Barrier System
Essential Protection Barrier
| Model | Height | Width | Length | Internal Cells |
|---|---|---|---|---|
| SX-1 | 54"(1.37m) | 42"(1.06m) | 32'9"(10m) | 5+4=9 cells |
| SX-2 | 24"(0.61m) | 24"(0.61m) | 4'(1.22m) | 2 cells |
| SX-3 | 39"(1.0m) | 39"(1.0m) | 32'9"(10m) | 5+5=10 cells |
| SX-4 | 39"(1.0m) | 60"(1.52m) | 32'9"(10m) | 5+5=10 cells |
| SX-5 | 24"(0.61m) | 24"(0.61m) | 10'(3.05m) | 5 cells |
| SX-6 | 66"(1.68m) | 24"(0.61m) | 10'(3.05m) | 5 cells |
| SX-7 | 87"(2.21m) | 84"(2.13m) | 91'(27.74m) | 5+4+4=13 cells |
| SX-8 | 54"(1.37m) | 48"(1.22m) | 32'9"(10m) | 5+4=9 cells |
| SX-9 | 39"(1.0m) | 30"(0.76m) | 30'(9.14m) | 6+6=12 cells |
| SX-10 | 87"(2.21m) | 60"(1.52m) | 100'(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48"(1.22m) | 12"(0.30m) | 4'(1.22m) | 2 cells |
| SX-12 | 84"(2.13m) | 42"(1.06m) | 108'(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108"(2.74m) | 42"(1.06m) | 10'5"(3.18m) | 6 cells |
