제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 스테인레스 스틸 시트, HDP 아연 도금 시트 | 표면 처리: | 뜨거운 담근 아연 도금, 스테인레스 스틸 |
|---|---|---|---|
| 삶을 사용합니다: | 10년 정도 됩니다 | 어플리케이션: | 잔디밭 철도 고속도로 농장 감옥 등 |
| 면도기 타입: | 한 개의 면도기 | 견본: | 무료 |
| 유형: | BTO-22, BTO-16, BTO-18, CBT-65, CBT-30 | 패키지: | 나무 팔레트, 방수 종이 |
| 외경: | 45-110mm | 재고: | 컨테이너 8개 |
| 강조하다: | hot dipped galvanized barbed wire,cross type razor wire fence,border protection barbed wire |
||

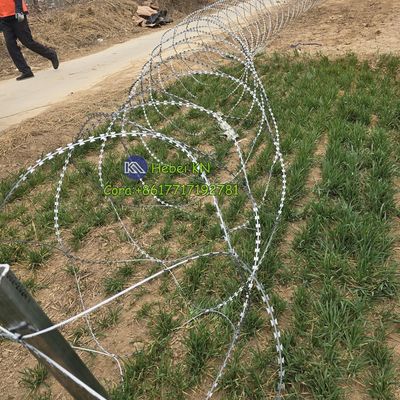

Cross Type Hot Dipped Galvanized Barbed Wire Razor Wire for Border Protection Fence
The Cross-Type Razor Wire is a high-strength security fencing material specifically designed for border defense. It combines hot-dip galvanizing technology with a cross-type blade structure, delivering excellent corrosion resistance and physical deterrence. Below are its detailed technical parameters and application characteristics:
Types of Razor Wire:
Razor Wire Fence
Concertina Razor Coils
Razor Wire Flat Wrap Coils
Welded Razor Wire
Razor Ribbon
Razor Wire Mobile Security Barrier
Galvanized Razor Wire
Straight Line Razor Wire Fence
Stainless Steel Razor Wire
Razor Wire Concertina
Double Concertina Razor Wire
Specification:
| Reference Number |
Thickness (mm) |
Wire Dia (mm) |
Bard Length (mm) |
Bard Width (mm) |
Bard Distance (mm) |
| BTO-10 | 0.5±0.05 | 2.5±0.05 | 10±1 | 13± | 16±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.05 | 12±1 | 15±1 | 26±1 |
| BTO-16 | 0.5±0.05 | 2.5-2.8 | 16±1 | 19±1 | 30±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.05 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.05 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.05 | 28±1 | 15±1 | 53+1 |
| BTO-30 | 0.5±0.05 | 2.5±0.05 | 30±1 | 21±1 | 54±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.05 | 60±1 | 32±1 | 100±1 |
| CBT-65 | 0.5±0.05 | 2.5±0.05 | 65±1 | 21±1 | 100±2 |
Razor Barbed Wire Coil and Unit Loops
| Outside Diameter | No.of Loops | Standard Length Per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
Details of Razor Wire:
Workshop:
Above is our No.3 workshop, producing BTO-16, Packed with wooden box. daily output is 1/40HQ.
Packing & Delivery:
1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.
Razor Wire and Perimeter Security:
Detection at the perimeter enables security personnel to quickly assess and respond to security events while intruders remain delayed or caught up in the razor wire. Any attempt to cut, bypass or disturb the razor wire is immediately detected.
