Galvanized Welded Mesh Gabion Box 5mm Wire 300 Gsm Geotextile Military Barrier

Galvanized Welded Mesh Gabion Box 5mm Wire 300 Gsm Geotextile Military Barrier

큰 이미지 :  Galvanized Welded Mesh Gabion Box 5mm Wire 300 Gsm Geotextile Military Barrier

제품 상세 정보:
Place of Origin: CHINA
브랜드 이름: KN
인증: CE ISO
Model Number: 1m x 1m x 5m
결제 및 배송 조건:
Minimum Order Quantity: 100 pcs
가격: Negotiated contact me now
Packaging Details: Plastic film outside and then Pallet
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per day
상세 제품 설명
Mesh Hole: 3"x3" 76.2*76.2mm Surface Treatment: heavy hot dipped galvanized
Wire Diameter: 5mm or 4mm Geotextile: 300 gsm
Application: River Flood Protection, Army life duration: ≥ 25 years
warranty: ≥ 3 years
강조하다:

galvanized welded mesh gabion box

,

5mm wire military barrier

,

300 gsm geotextile gabion

Galvanized Welded Mesh 5mm Wire 300 Gsm Geotextile Lined Earth Filled Military Gabion Box For Army Defensive Barrier

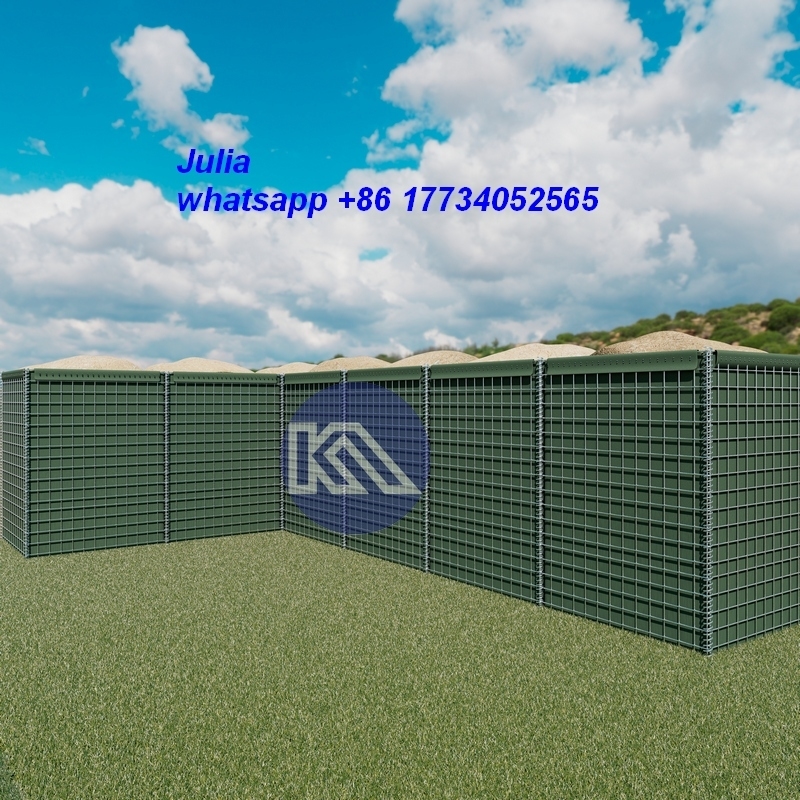

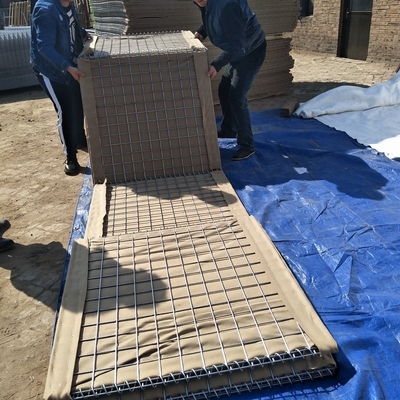

Defensive Barrier is also named as Welded bastion, Welded defense wall, Welded Barrier, Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then Welded Gabion barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.



Defensive barrier, also known as gabion barrier and defensive bastion, is a new product assembled and sewn from welded gabion mesh and geotextile, which has the ability to resist explosive shock waves and limit the destructive effects of explosions to a certain range. Compared with reinforced concrete explosion-proof walls, it has the advantages of light weight, easy installation, disassembly and recycling.
Product Name
Defensive bastion
Product Type
Cloth Gabion Barrier defensive bastion bunkers
Material
Galvanized steel wire or Galfan/zinc-5%aluminum wire
Wire Diameter
4.0-6.0mm
Geotextile
250-600g
Geotextile colour
Beige, Green, etc.
Mesh hole
76.2*76.2mm,50*50mm,75*75mm,100*100mm
More Information
For more product information,please contact us,and we have in stock to support customization.



operational principle



It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.



Quick Details



                            Defensive Barrier Specification



Model Height Width Length Internal Cells
KN-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
KN-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
KN-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
KN-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
KN-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
KN-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
KN-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
KN-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
KN-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
KN-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
KN-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
KN-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
KN-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells




Defensive Barrier Details Specification



1. Wire diameter: 4-5mm

2. Mesh size: 3" (75x75mm,50x50mm)

3. Panel size: 12 type size for any security protection,suddenly burst attacks

4. Geotextile: in heavy duty non-woven polypropylene;

5. Color: Grey and Military Green,Sand color etc.

6. Finish: hot dipped galvanized, Galfan wire.

7. Packing: wrapped with shrink film or packed in pallet




Defensive Barrier Application



1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration



2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.



3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.



4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.




Defensive Barrier Features



1. having a Galfan coated steel mesh framework

2. integrated cells to provide internal structural integrity.

3. exceptional strength and structural integrity

4. High tensile and anti-impact capability

5. making transportation efficient and rapid



Galvanized Welded Mesh Gabion Box 5mm Wire 300 Gsm Geotextile Military Barrier 0Galvanized Welded Mesh Gabion Box 5mm Wire 300 Gsm Geotextile Military Barrier 1Galvanized Welded Mesh Gabion Box 5mm Wire 300 Gsm Geotextile Military Barrier 2
